FOLDING PARTITION

Type 80

HIGHLY VERSATILE ACOUSTIC ROOM SUB-DIVISION

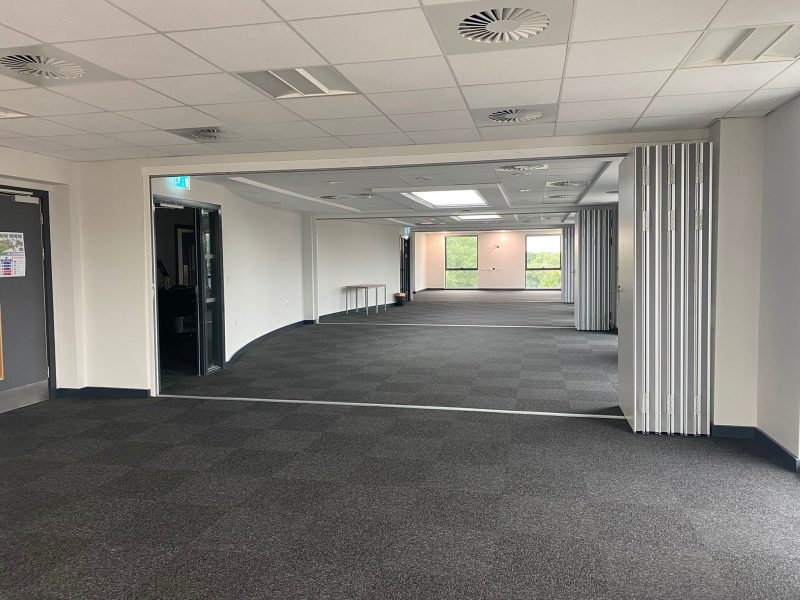

The Type 80 system is historically our most popular sliding and folding partition, that offers good levels of sound reduction at an economical price. Folding partitions allow clients to effectively and efficiently divide numerous areas offering an easy solution to the often complex problem of space management.

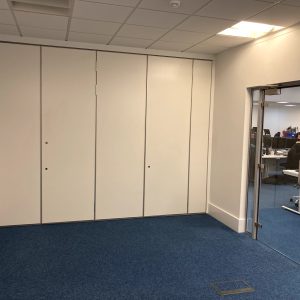

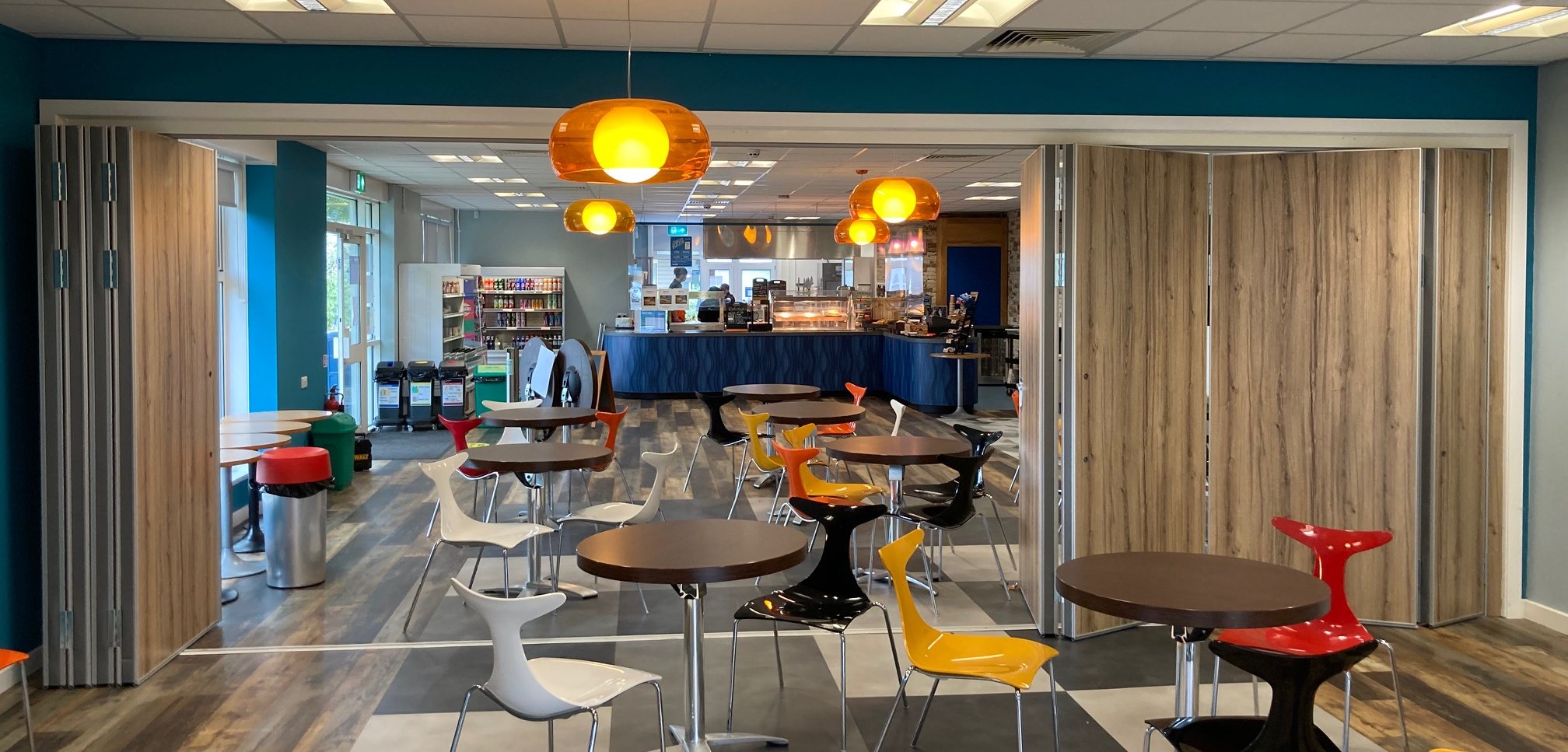

The system consists of continuously hinged together panels, connected with a series of satin anodised aluminium or stainless-steel hinges to form a flat wall when positioned across the opening. This creates a system that has the aesthetics of a flat moveable wall yet the ease of operation of a concertina partition and provides a sound rating of Rw 38-45dB when coupled with acoustic seals to the head, base, and sides of each panel.

To enhance flexibility, we can offer the system as both a top hung or a bottom rolling solution, allowing for installation when a soffit/ceiling head fixing is restricted or not possible.

The panels gain extra stability by means of a locking arrangement. Each alternative panel contains an internal espagnolette bolt mechanism operated via a detachable handle at a convenient height from the floor. The locking pin engages the discrete aluminium floor track and aluminium top guide rail to ensure the panels close flat, flush and are rigid. The leading panel in the opening can be used as a full height pass door (with optional lock).

The aforementioned features make the Type 80 system an ideal solution across a whole host of applications, particularly in those environments where hot desking and flexible working environments exist e.g. office spaces and schools.

Request quotation

Folding Partition Information

FINISHINGS

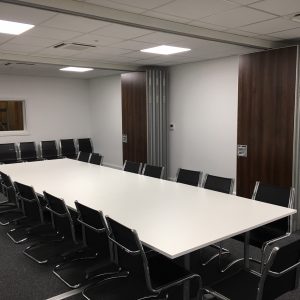

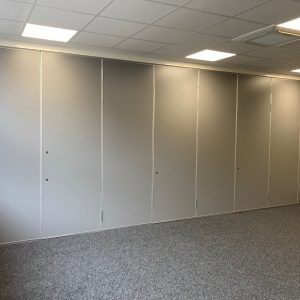

The panels can be finished in priming sheet for on-site decoration, standard factory finish in melamine or high quality spray-paint finish, textile coverings, a full range of laminates or veneers, high-tech digital print or finish to suit clients’ requirements.

Click here to see our standard finishing range (*).

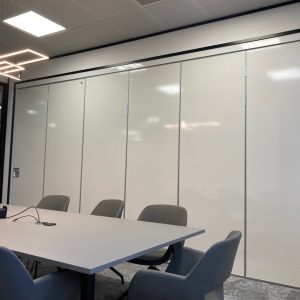

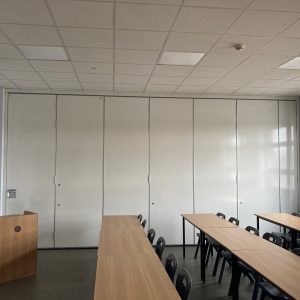

Beyond our standard range, we also offer a wide range of other finishes, for example; clear erase, magnetic, digital print. For more information contact us at hello@moveablewallsolutions.co.uk or check out our refurbishment page here.

(*) subject to availability

FEATURES

Floor supported system
Continuously hinged panels
Acoustically seals at ceiling track and floor track or floor surface
Single or Bi-parting unit configurations
Lead panel can act as Pass door available at no extra cost
Manufactured in the UK

BENEFITS

Simple and speedy operation
Top supporting RSJ’S not required
Good acoustic performance
Swift access to neighbouring room possible
Flexible system configurations available

Download data sheetClick Here

Download BrochureClick Here

TECHNICAL DATA

Acoustic rating from 38-45dB laboratory tested to ISO 140 Part 3
Applications up to 3600mm high
Bottom rolling floor supported or top hung
Available in a host of surface finishes

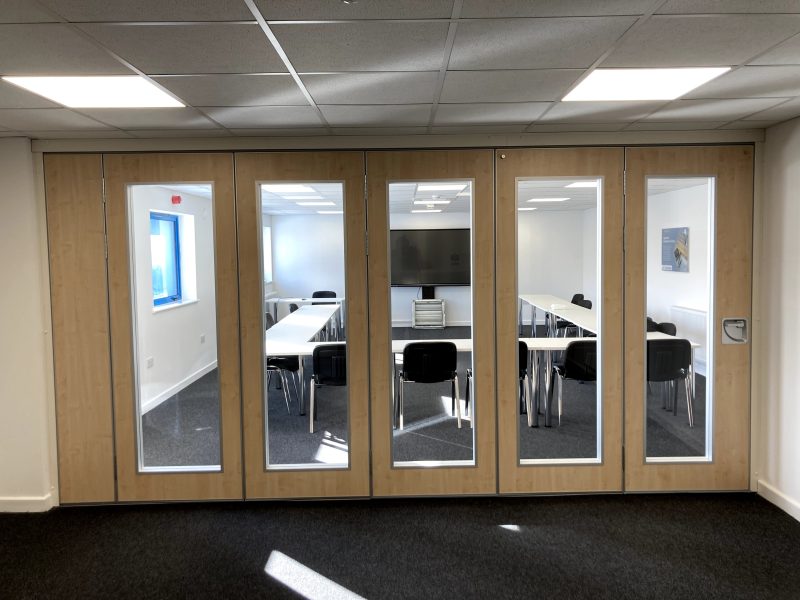

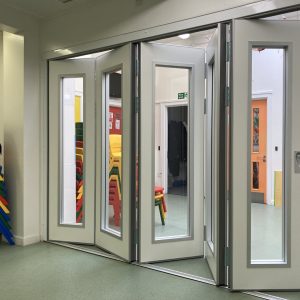

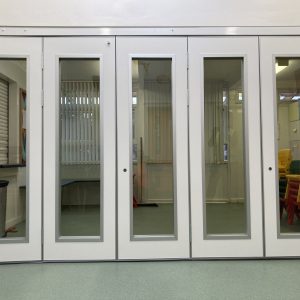

Glazed panels available
Single or double point suspension for versatile stacking options
Panel widths from 600mm-850mm
Nominal panel thickness 70-100mm
Manufactured in the UK
